ALIPLAST GENESIS 90
Описание

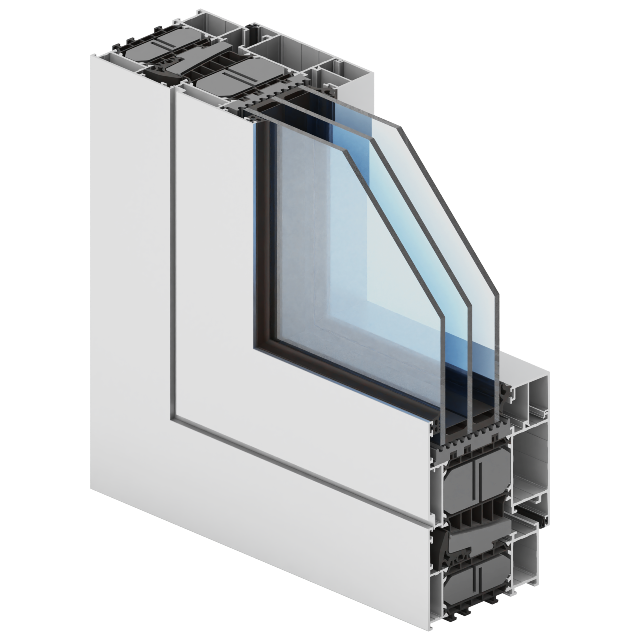

Aliplast is one of the leading companies on the European market in the development, marketing and distribution of high-quality aluminum systems for windows, doors, sliding elements, curtain walls, roofing systems. Aliplast is a member of the internationally renowned Corialis Group, established in 1984 with headquarters in Lokeren, Belgium. Genesis 90 is a modern aluminum system designed for the construction of windows with increased thermal insulation and meets the highest thermal requirements for shop windows and window installations in Europe and around the world. It meets the requirements for components used in passive construction. The system has many options to meet all the design and functionality requirements of the customer such as the production of structures with hidden sashes, outward opening windows and a wide range of different finishes for the sashes and frames. The Genesis 90 system is certified by the Passive House Institute in Darmstadt (PHI). It is a great solution for your new home.
Предимства
25-year factory warranty on the paint.
Significant energy savings thanks to thermal insulation characteristics.
Increased levels of security, comfort and convenience.
High quality and long life of the profile.
A wide variety of designs and solutions according to your personal needs.
Wide range of colors – RAL palette, texture colors, wood colors, colors imitating stone surfaces, anodized color and two-tone.
Certified features.
It is possible to use all corner solutions: available diagonal profiles with variable angles, all-glass corners, etc.
Техническа характеристика

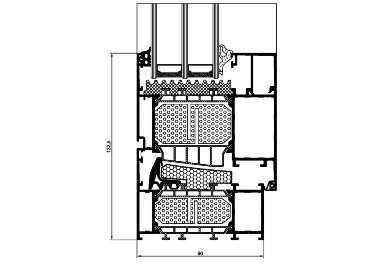

FRAME DIMENSIONS
90mm
SASH DIMENSIONS
99m
GLAZING THICKNESS
fix 16 - 74 mm, window 20 - 83 mm
THERMAL INSULATION
Uf from 0,57 W/m2K
AIR PERMEABILITY
Class 4; EN 12207
WINDLOAD RESISTANCE
C3/B3 (1200 Pa); EN 12210
WATERTIGHTNESS
E1200 (1200Pa); EN 12208
