EXALCO ALBIO 109C SUPERTHERMO
Описание
EXALCO S.A. is a member of the Greek Aluminium Association and is the first Greek company to extrude aluminium profiles for Aluminium Zentrale E.V. Exalco's products and services are certified according to ISO 9001, QUALICOAT and QUALANOD. Albio 109C SuperThermo is an openable system with a thermal break, which allows the production of all possible doors and windows, making even the most complex structures possible, while protecting the premises from heat, cold and noise. With its modern design, this series guarantees the achievement of the highest aesthetic standards. The system guarantees good thermal insulation and water tightness thanks to its three EPDM seals. It is an exceptionally good solution for your home or business building.
Предимства
Exceptional quality with certified features.
Trouble-free use and high functionality.
Flexibility in manufacturing.
A wide variety of typologies and solutions.
Increased static loads and functionality in case of harsh weather conditions.
Significant energy savings thanks to thermal insulation characteristics.
A wide variety of colors.
Техническа характеристика

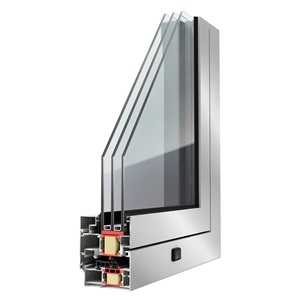

FRAME DIMENSIONS
Width 76,5mm, height 72mm
SASH DIMENSIONS
Width 77,3mm, height 53,3mm
GLAZING THICKNESS
From 20 mm to 50.6 mm
SEALING
3 levels with EPDM seals
THERMAL - BREAK
34mm
WATER TIGHTNESS
class Ε750 (EN 1027:2000 / EN 12208:2000)
WIND RESISTANCE
Class C4 (EN 12211:2000 / EN 12210:2000)
HEAT TRANSFER COEFFICIENT
1.5 – 2.0 W/(m2K) (EN 10077-2:2003-10)
