EXALCO ALBIO R50
Описание

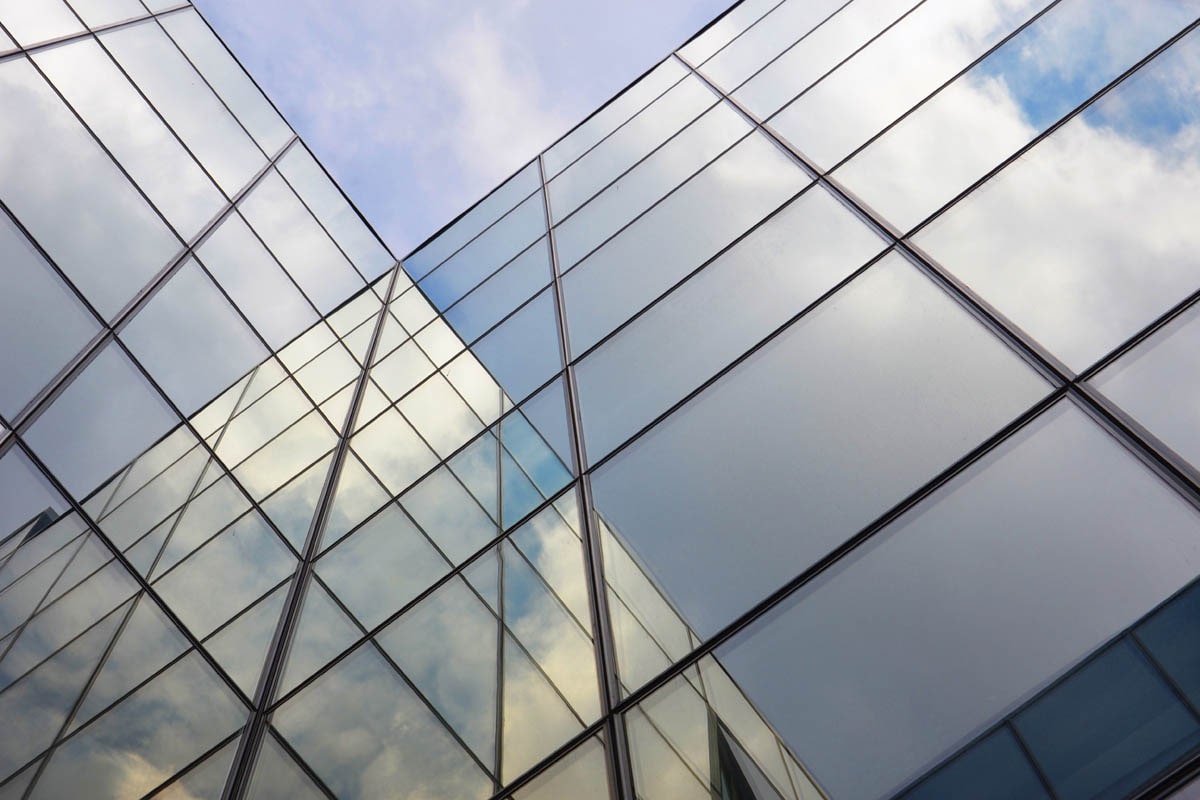

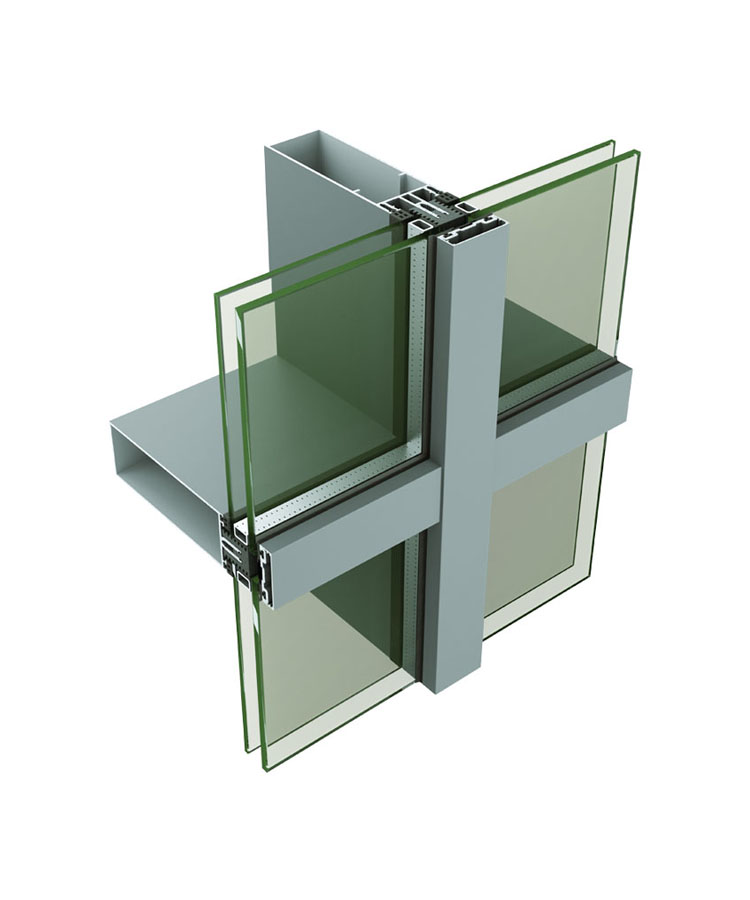

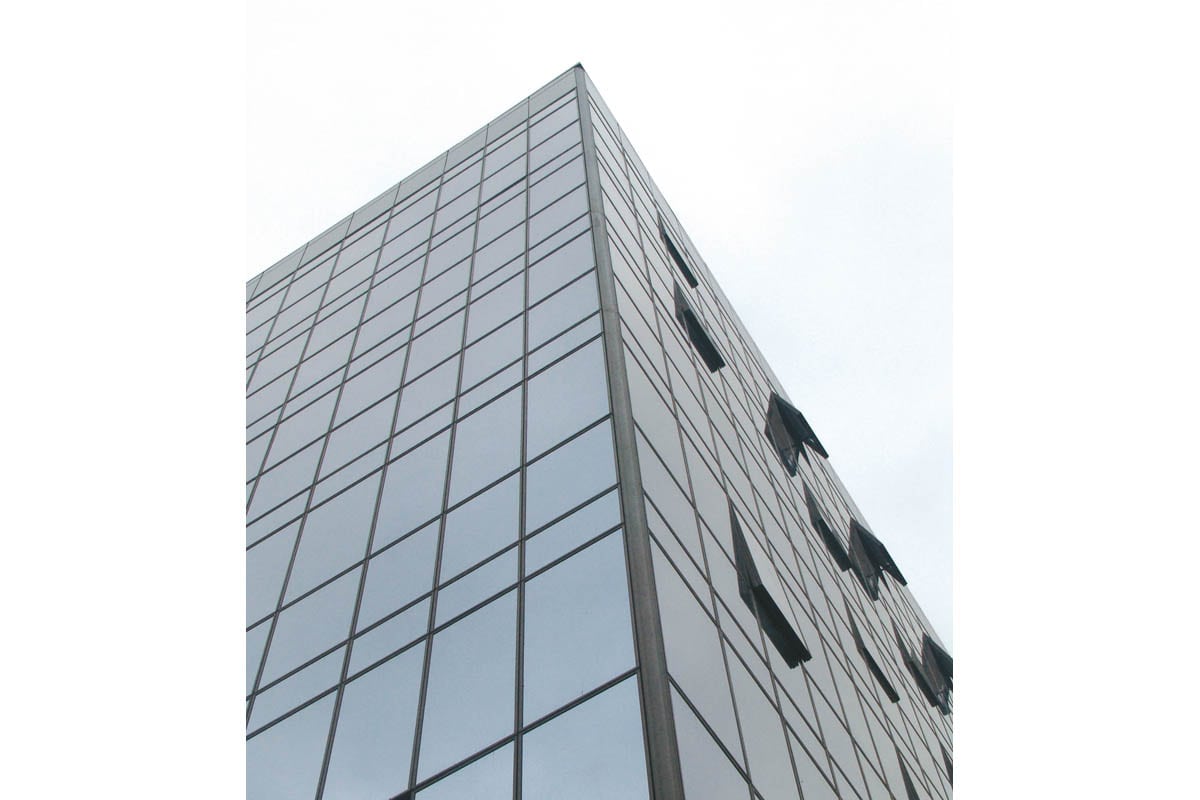

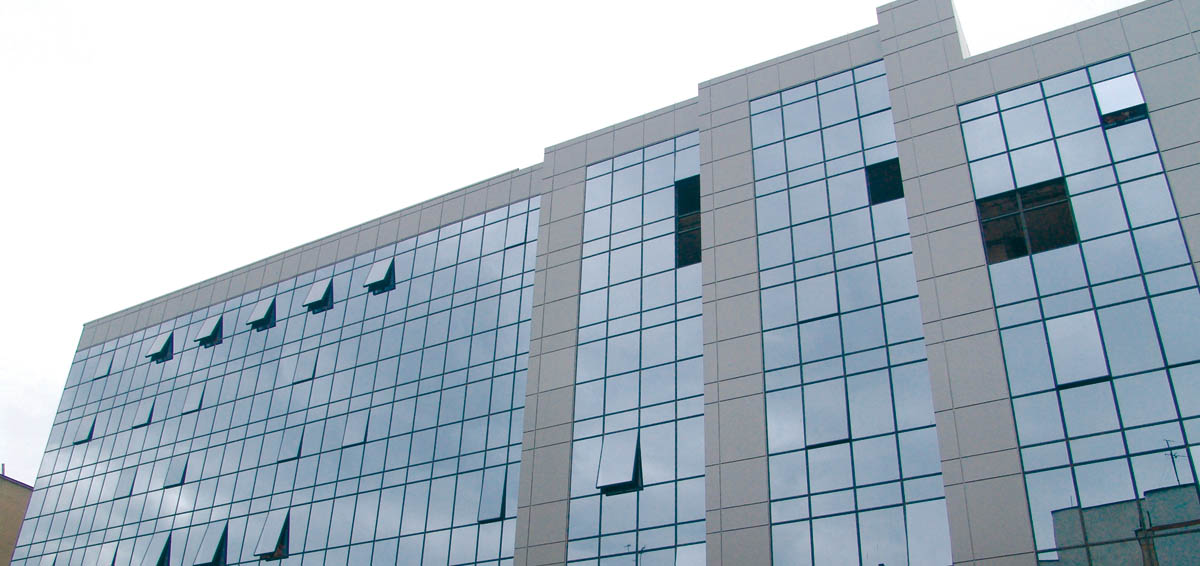

EXALCO S.A. is a member of the Greek Aluminium Association and is the first Greek company to extrude aluminium profiles of Aluminium Zentrale E.V. Exalco's products and services are certified according to ISO 9001, QUALICOAT and QUALANOD. ALBIO R50 is a system for standard type curtain walls with a visible width of 50 mm. The system allows for the production of a wide range of typologies, polygonal structures, opening flaps and the integration of windows and doors. ALBIO R50 offers superior thermal insulation and acoustic characteristics. These are achieved by using a continuous, multi-cellular thermal insulator called "Nomaflex / NOMATEC XPE".
Предимства
Significant energy savings thanks to thermal insulation characteristics.
Increased levels of comfort, convenience, security and noise insulation.
Flexibility in manufacturing.
High quality and long life of the profile.
Increased static loads and functionality in case of harsh weather conditions.
Wide range of colors
Possibility of installing doors and windows.
Техническа характеристика
MAXIMUM GLASS THICKNESS
50мм
VISIBLE WIDTH
50мм
WATER TIGHTNESS
Class Re1500
WIND RESISTANCE
±1,50 kN/m²
AIR PERMEABILITY
Clasa AE
IMPACT RESISTANCE
Ι3/Ε4
HEAT TRANSFER COEFFICIENT
1.67 - 1,88 W/(m² K)
Галерия
